On Line Filter Filtration Box CFF12 Size 12 Inches Siliver for Purity Molten Aluminum
In line Siliver CFF Filtration Box for Purity Molten Aluminum
Molten Aluminum On Line Filtration Plate Purity Box
1. Equipment Introduce
The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.
According to the quality requirements of castings, the volume of molten aluminum, the total volume of filtered
aluminum, and the cleanliness of the aluminum itself, the correct selection of the type of filter box and the specifications
of the foam filter plate help to achieve satisfactory filtration results. With foam ceramic filter plate, the filtering effect
is better.
2. Main Paremeters
| Item | Data | Remark |
| Power Source | Phase | 3 | |
| Voltage V | 380±10% |
| Frequency Hz | 50 |
| Total Power kW | < 30 |
| Heating | Power kW | 60 | |
| Rated Filtration Flow t/h | 5 | |
| Filter Plate Size | 12″*12″*1″ | |
| Filter Plate Porosity | 20 PPI | |
| Lining Preheating Heating Speed | ＞40℃/hr | |
| Temperature Control | PLC＋Atmosphere, aluminum liquid temperature control | |
| Temperature Rising of the outer shell of the box ℃ | ≤55 | Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute |

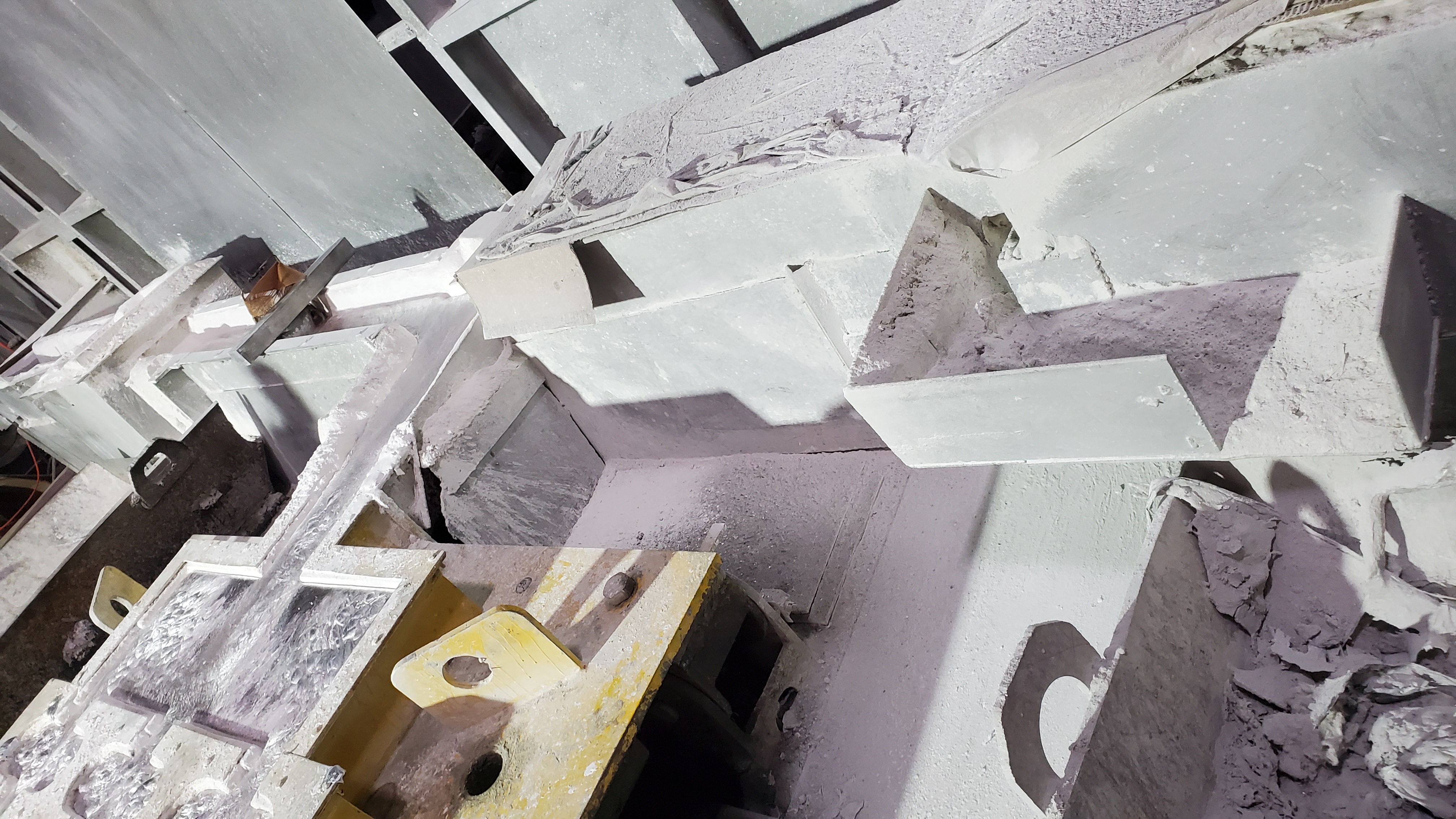

3. Reference Pictures
4. Models
| Size of Plate | 12’’ | 17’’ | 23’’ |
| Type | CFF-12 | CFF-17 | CFF-23 |
5. Exhibition
6. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
